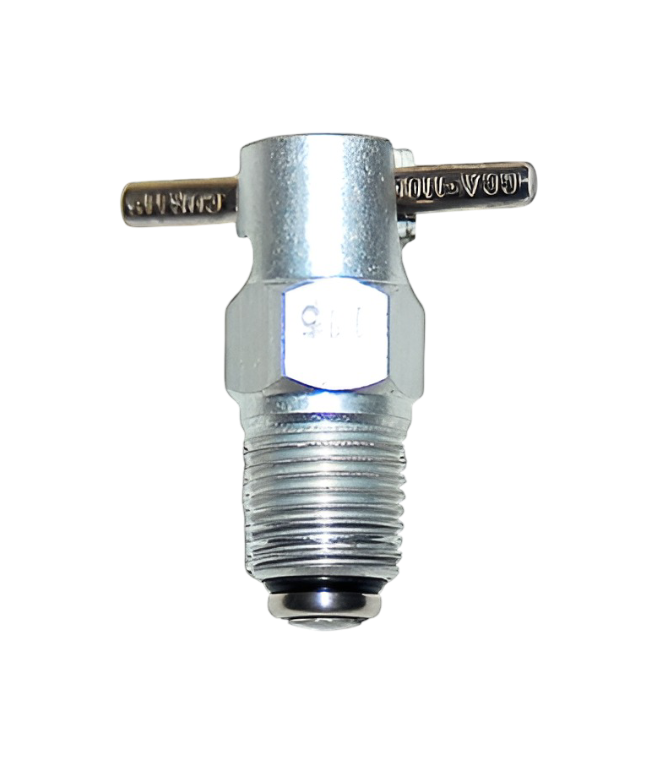

| CCA-1100 Curtis Pipe Thread T-Handle Fuel Drain Valve Out of stock |
The Curtis Valves CCA-1100 1/8 NPT fuel drain valve is a non-certified valve. Its design is spring loaded in the closed position, and can be locked in the open position using a push and turn action. The valve spring is made from non-corrosive, long lasting stainless steel. Valve body and moving parts are manufactured using aluminum and stainless steel to precise standards. The O-ring is made of a specially compounded “cure dated” Viton material to withstand a wide variety of liquids including bio-fuels over a broad temperature range. The CCA-1100 O-ring can be replaced, part # CCA-007V
► Can be used with Curtis Drain Hose CCB-39600-5
► Use Installation tool: CST-716
(This Valve is compatible with Biofuels, ideal for homebuilders looking to experiment with alternative fuels)
General Details
| Material | Aluminum |
|---|---|
| Thread Size | 1/8 NPT |
| Valve Inst Length | 0.790" |
| Lock Wire Drilled | No |
| Certification | Experimental only (non-certified) |
