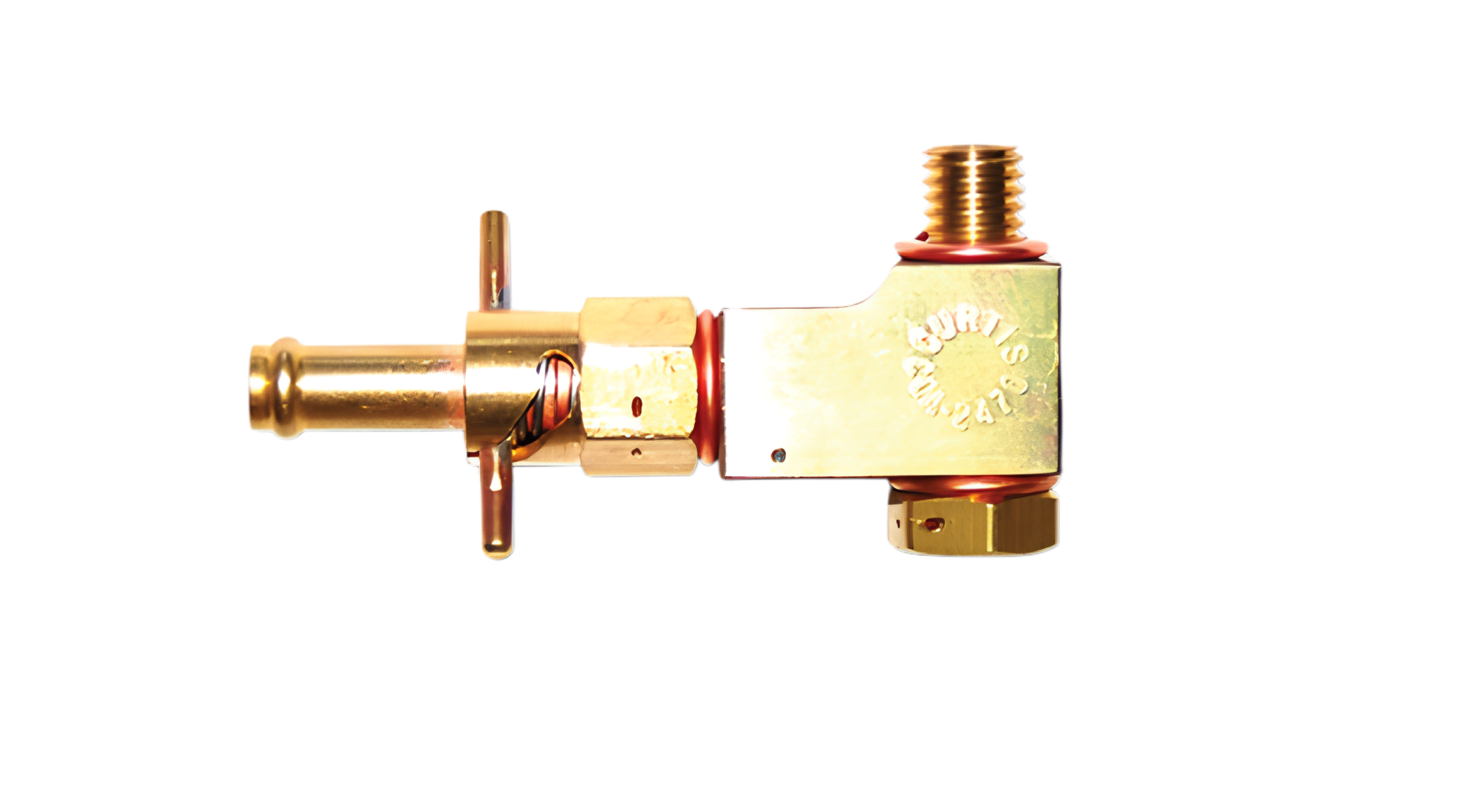

| CCA-2475 Rotax 90 Degree Oil Drain Valve Assembly Out of stock |
Info:

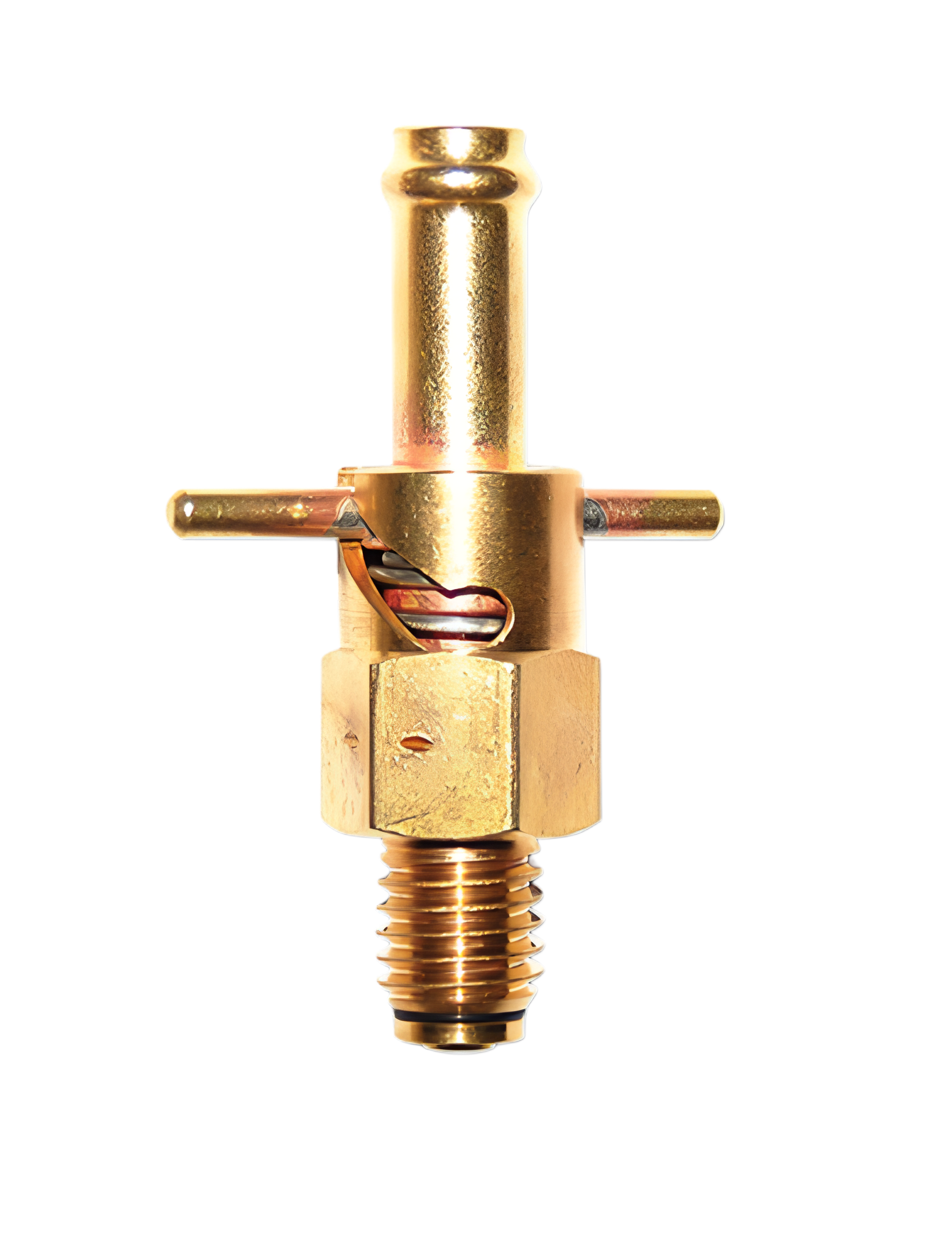

-This assembly contains 1EA Curtis CCA-2450 Rotax engine oil drain valve, and 1EA Curtis CCA-2470 Rotax 90-degree adapter. (Also available separately)
-Depending on the application, the CCA-2470 90-degree adapter may be required to achieve the needed clearance for installation, (for example to stay clear of the exhaust muffler).
- A Rotax oil tank extension adapter piece Curtis CCA-2474 is also available, if required to achieve the needed clearance for installation. (This adapter is also a requirement for installation on late engine models)
Applicability:
Same as Curtis CCA-2450 Rotax engine oil drain valve.
For additional questions regarding applicability please contact us.
General Details
| Material | Aluminum Adapter, Brass Valve |
|---|---|
| Thread Size | 12 mm 1.75 |
| Valve Action | Spiral to Open, Turn to Lock |
| Lock Wire Drilled | Yes, (Both Valve and Adapter) |
| Mounting Crush Gasket | Valve: MS 35769-8, Adapter: MS 35769-8 & -9 |
| Certification | Non-Certified (Experimental Only) |
