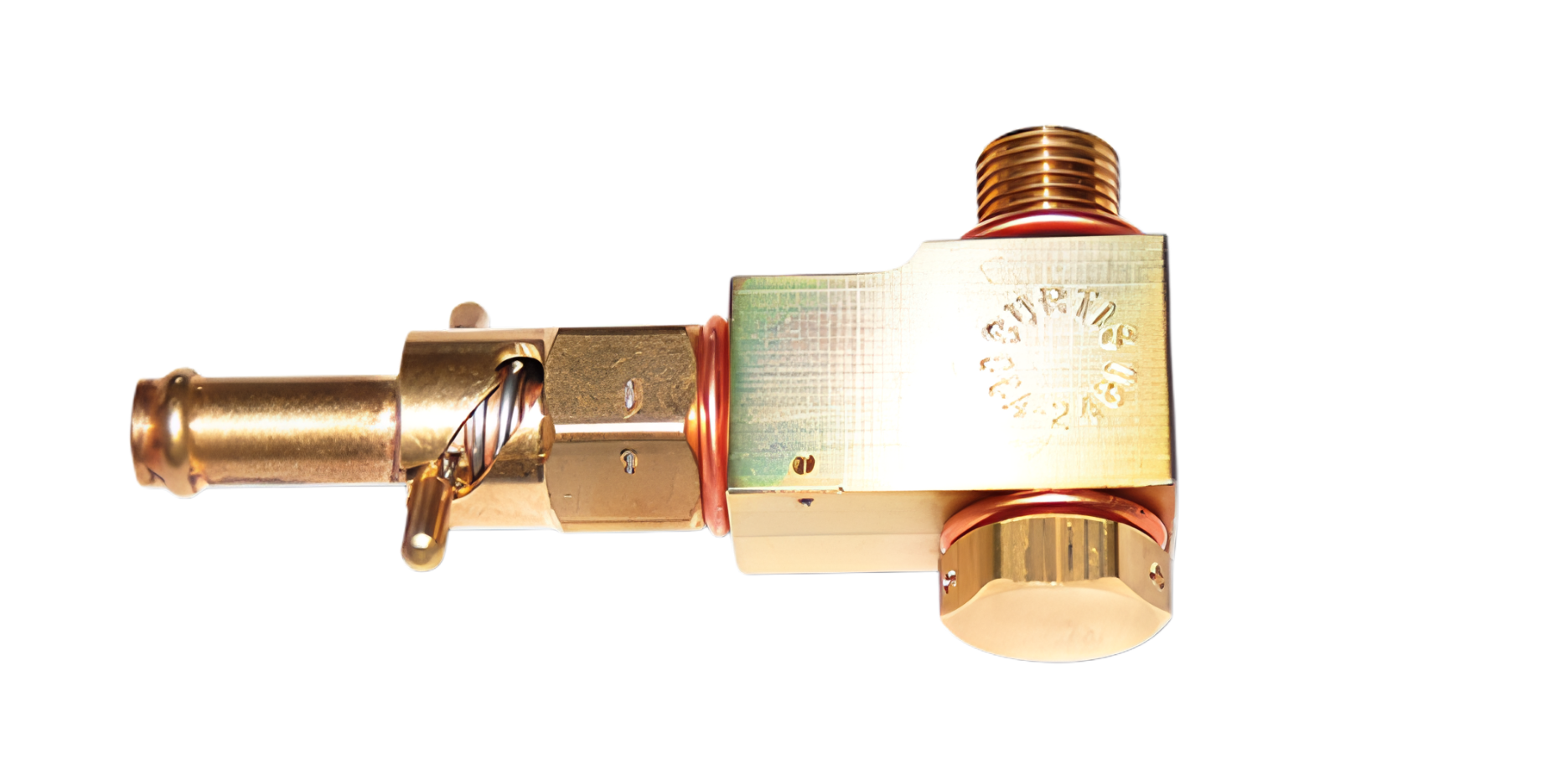

| CCA-2485 Jabiru 90 Degree Oil Drain Valve Assembly Out of stock |
Info:
-This assembly contains 1EA Curtis CCA-2460 Jabiru engine oil drain valve, and 1EA Curtis CCA-2480 Jabiru 90-degree adapter. (Also available separately)

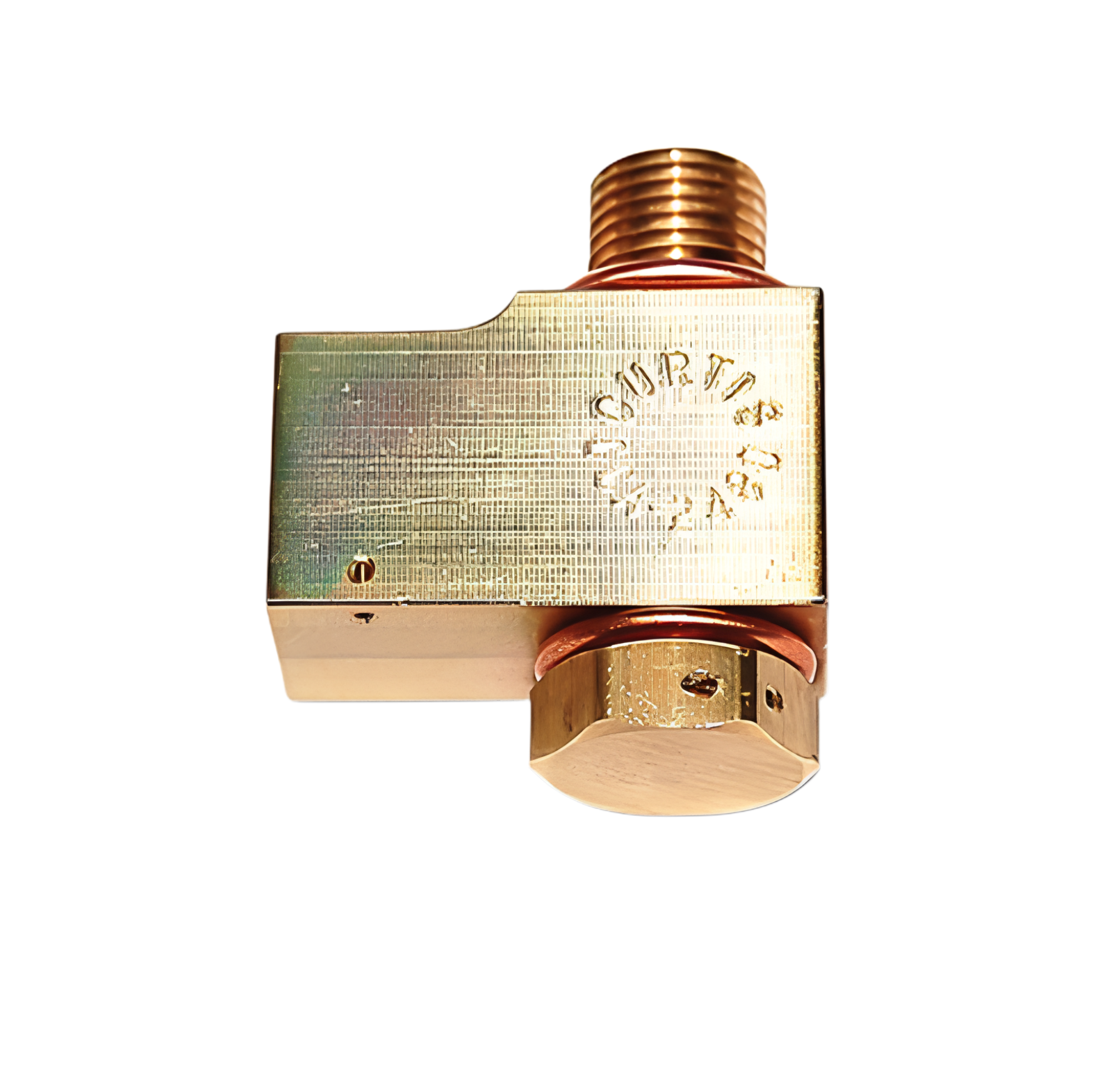

-Depending on the application, the CCA-2480 90-degree adapter may be required to achieve the needed clearance for installation, (for example to stay clear of the engine exhaust muffler).
Applicability:
Same as Curtis CCA-2460 Jabiru engine oil drain valve.
For additional questions regarding applicability please contact us.
General Details
| Material | Aluminum Adapter, Brass Valve |
|---|---|
| Thread Size | 1/2-20 UNF |
| Valve Action | Spiral to Open, Turn to Lock |
| Lock Wire Drilled | Yes, (Both Valve and Adapter) |
| Mounting Crush Gasket | Both Valve & Adapter use: MS 35769-9 |
| Certification | Non-Certified (Experimental Only) |
