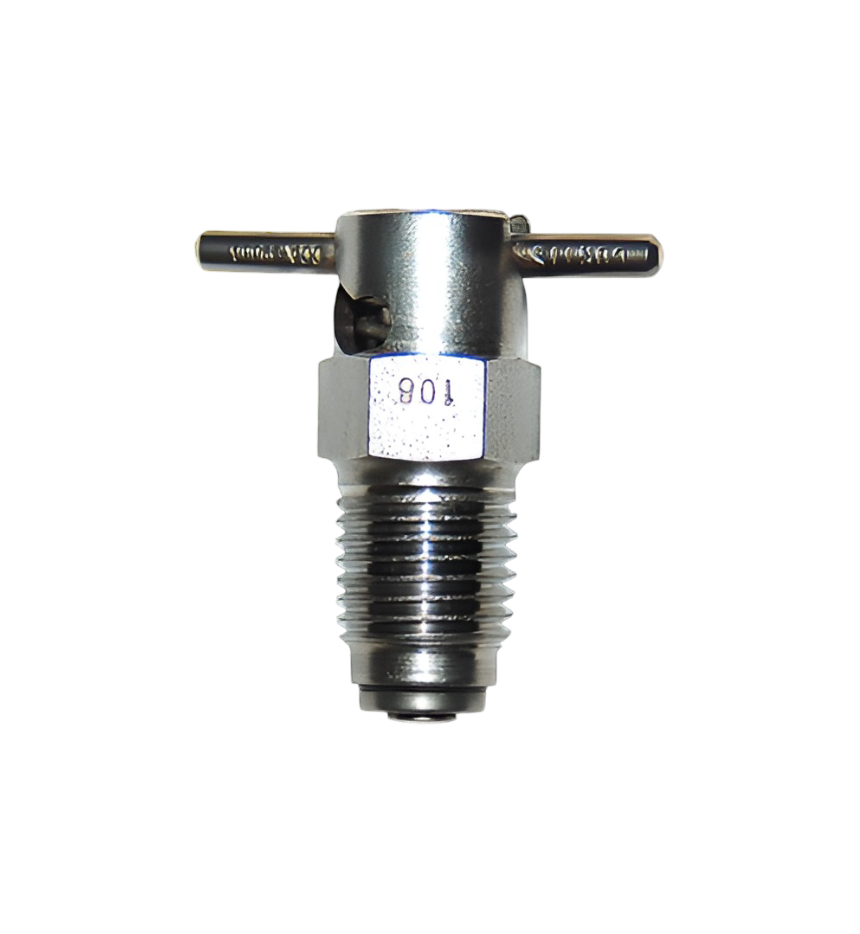

| CCA-39000 Curtis Pipe Thread T-Handle Stainless Steel Fuel Drain Valve Out of stock |
The Curtis Valves CCA-39000 1/4 NPT fuel drain valve is FAA certified to TSO-C76 MPS. Its design is spring loaded in the closed position, and can be locked in the open position using a push and twist action. The valve body and moving parts are manufactured from stainless steel to precise standards. The valve spring is made from non-corrosive, long lasting stainless steel. The seal is made of a specially compounded “cure dated” synthetic rubber to withstand a wide variety of liquids over a broad temperature range. The CCA-39000 uses a wedge seal design which helps to prevent leakage and improved seal life. The CCA-39000 seal cannot be replaced.
► Can be used with Curtis Drain Hose CCB-39600-3
► Use Installation tool: CST-916
General Details
| Material | Stainless Steel |
|---|---|
| Thread Size | 1/4 NPT |
| Valve Action | Spiral to Open, Turn to Lock |
| Valve Inst Length | 0.925" |
| Lock Wire Drilled | No |
| Certification | TSO-C76 |
