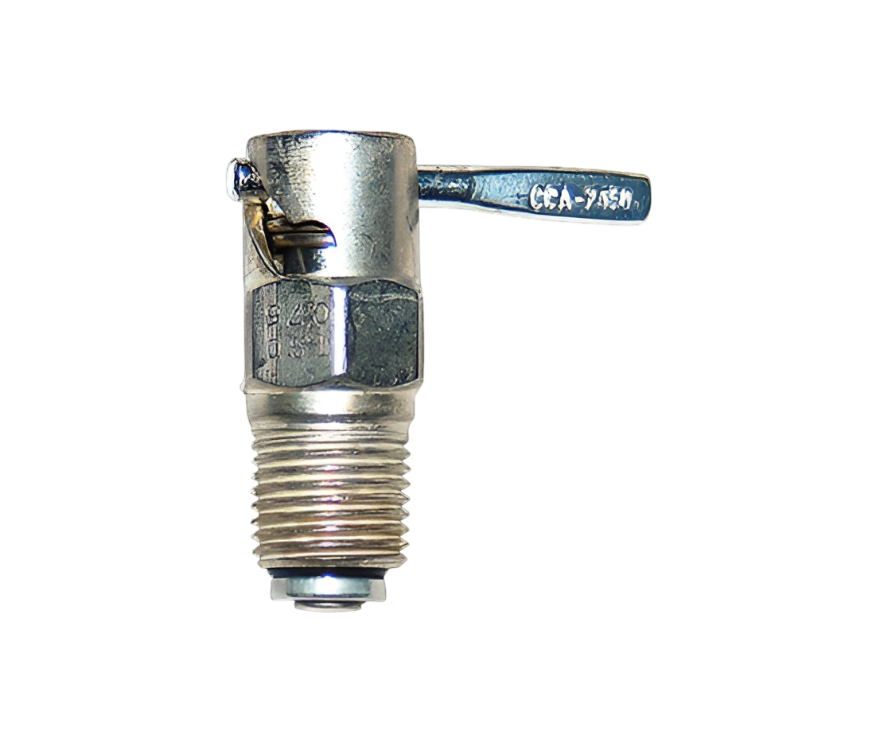

| CCA-7450 Curtis Pipe Thread T-Handle Fuel Drain Valve Out of stock |
The Curtis Valves CCA-7450 1/8 NPT fuel drain valve is FAA certified to TSO-C76 MPS. Its design is spring loaded in the closed position, and can be locked in the open position using a push and turn action. The valve spring is made from non-corrosive, long lasting stainless steel. Valve body and moving parts are manufactured from Cadmium plated brass to precise standards. The seal is made of a specially compounded “cure dated” synthetic rubber to withstand a wide variety of liquids over a broad temperature range. The CCA-7450 uses a wedge seal design which helps to prevent leakage and improved seal life. The CCA-7450 seal cannot be replaced.
► Use Installation tool: CST-716
Applicability:
This valve is commonly used on many Cessna and Piper aircraft models, for questions regarding applicability, please don’t hesitate to contact us!
General Details
| Material | Brass Cadmium Plated |
|---|---|
| Thread Size | 1/8 NPT |
| Valve Action | Spiral to Open, Turn to Lock |
| Valve Inst Length | 0.790" |
| Lock Wire Drilled | No |
| Certification | TSO-C76 |
Direct replacement for
| Piper | 492-100 |
|---|---|
| Cessna | 0511199-20 |
