| CCB-36750 Curtis Pipe Thread T-Handle Stainless Steel Fuel Drain Valve Out of stock |

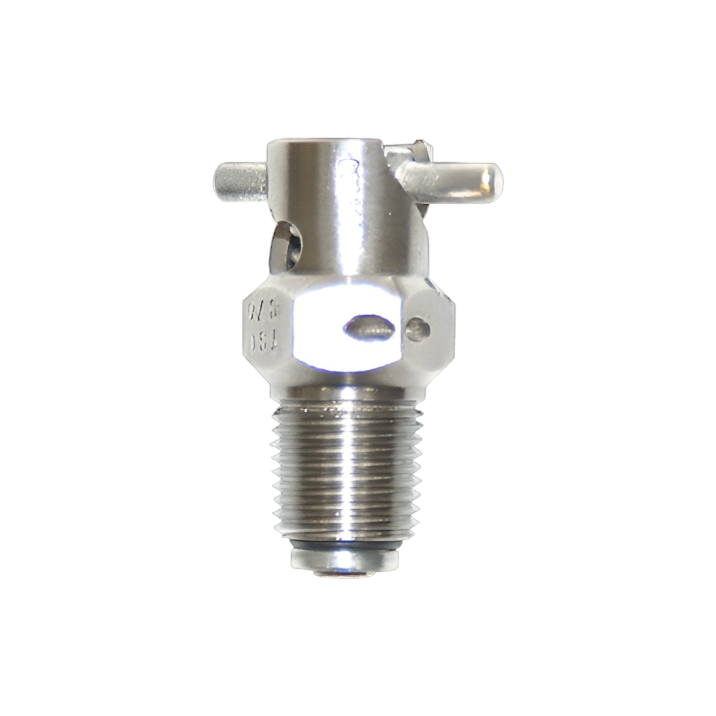

The Curtis Valves CCB-36750 1/8 NPT fuel drain valve is FAA certified to TSO-C76 MPS. Its design is spring loaded in the closed position, and can be locked in the open position using a push and twist action. The valve body and spring are made from non-corrosive, long lasting stainless steel. All moving parts are manufactured from Cadmium plated brass to precise standards. Includes safety wire provisions. The seal is made of a specially compounded “cure dated” synthetic rubber to withstand a wide variety of liquids over a broad temperature range. The CCB-36750 uses a wedge seal design which helps to prevent leakage and improved seal life. The CCA-36750 seal cannot be replaced.
► Can be used with Curtis Drain Hose CCB-39600-5
► Use Installation tool: CST-716
General Details
| Material | Stainless Steel Body, Brass Stem |
|---|---|
| Thread Size | 1/8 NPT |
| Valve Action | Spiral to Open, Turn to Lock |
| Valve Inst Length | 0.725" |
| Lock Wire Drilled | Yes |
| Certification | TSO-C76 |
